Swing 示例 - 为 JPanel 添加标题边框

以下示例展示了如何在 Java Swing 应用程序中为 JPanel 的边框添加标题。

我们使用以下 API。

• BorderFactory.createTitledBorder() − 创建带标题的边框。

• JPanel.setBorder(border) − 为 JPanel 设置所需边框。

示例

import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.FlowLayout;
import java.awt.LayoutManager;

import javax.swing.BorderFactory;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.border.Border;

public class SwingTester {

   public static void main(String[] args) {
      createWindow();
   }

   private static void createWindow() {
      JFrame frame = new JFrame("Swing Tester");
      frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

      createUI(frame);
      frame.setSize(560, 200);
      frame.setLocationRelativeTo(null);
      frame.setVisible(true);
   }

   private static void createUI(JFrame frame){
      //Create a border
      Border blackline = BorderFactory.createTitledBorder("Title");
      JPanel panel = new JPanel();
      LayoutManager layout = new FlowLayout();
      panel.setLayout(layout);

      JPanel panel1 = new JPanel();
      String spaces = "                   ";

      panel1.add(new JLabel(spaces + "Title border to JPanel" + spaces));
      panel1.setBorder(blackline);

      panel.add(panel1);
      frame.getContentPane().add(panel, BorderLayout.CENTER);
   }
}

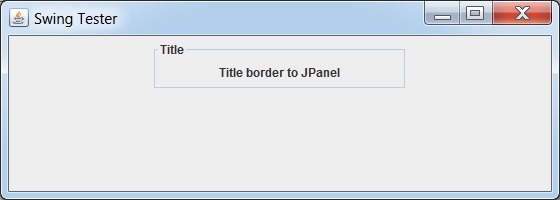

输出

swingexamples_borders.html
