Swing 示例 - 创建树

以下示例展示了如何在 Java Swing 应用程序中创建树。

我们使用以下 API。

• JTree(root) − 创建树。

• DefaultMutableTreeNode() − 创建树节点。

• DefaultMutableTreeNode().add(node) − 将树节点添加到树节点。

示例

import java.awt.FlowLayout;
import java.awt.GridLayout;
import java.awt.event.WindowAdapter;
import java.awt.event.WindowEvent;

import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JScrollPane;
import javax.swing.JTree;
import javax.swing.tree.DefaultMutableTreeNode;

public class SwingTester {
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingTester(){
      prepareGUI();
   }
   public static void main(String[] args){
      SwingTester swingControlDemo = new SwingTester();
      swingControlDemo.showTableDemo();
   }
   private void prepareGUI(){
      mainFrame = new JFrame("Java Swing Examples");
      mainFrame.setSize(500,700);
      mainFrame.setLayout(new GridLayout(3, 1));

      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      headerLabel = new JLabel("", JLabel.CENTER);
      statusLabel = new JLabel("",JLabel.CENTER);
      statusLabel.setSize(350,100);

      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }
   private void showTableDemo(){
      headerLabel.setText("Control in action: JTree");
      // 创建一个根树项作为部门
      DefaultMutableTreeNode department = new DefaultMutableTreeNode("Department");

      //创建其他树项作为部门名称
      DefaultMutableTreeNode salesDepartment = new DefaultMutableTreeNode("Sales");
      DefaultMutableTreeNode marketingDepartment = new DefaultMutableTreeNode("Marketing");
      DefaultMutableTreeNode manufacturingDepartment = new DefaultMutableTreeNode("Manufacturing");

      //创建其他树项作为员工
      DefaultMutableTreeNode employee1 = new DefaultMutableTreeNode("Robert");
      DefaultMutableTreeNode employee2 = new DefaultMutableTreeNode("Joe");
      DefaultMutableTreeNode employee3 = new DefaultMutableTreeNode("Chris");

      //将员工添加到销售部门
      salesDepartment.add(employee1);
      salesDepartment.add(employee2);
      salesDepartment.add(employee3);

      //创建其他树项作为员工
      DefaultMutableTreeNode employee4 = new DefaultMutableTreeNode("Mona");
      DefaultMutableTreeNode employee5 = new DefaultMutableTreeNode("Tena");


      //将员工添加到市场部门
      marketingDepartment.add(employee4);
      marketingDepartment.add(employee5);

      //创建其他树项作为员工
      DefaultMutableTreeNode employee6 = new DefaultMutableTreeNode("Rener");
      DefaultMutableTreeNode employee7 = new DefaultMutableTreeNode("Linda");

      //将员工添加到销售部门
      manufacturingDepartment.add(employee6);
      manufacturingDepartment.add(employee7);

      //将部门添加到部门项目中
      department.add(salesDepartment);
      department.add(marketingDepartment);
      department.add(manufacturingDepartment);

      //创建以部门为根节点的树
      JTree tree = new JTree(department);
      JScrollPane treeView = new JScrollPane(tree);
      controlPanel.add(treeView);

      mainFrame.setVisible(true);
   }
}

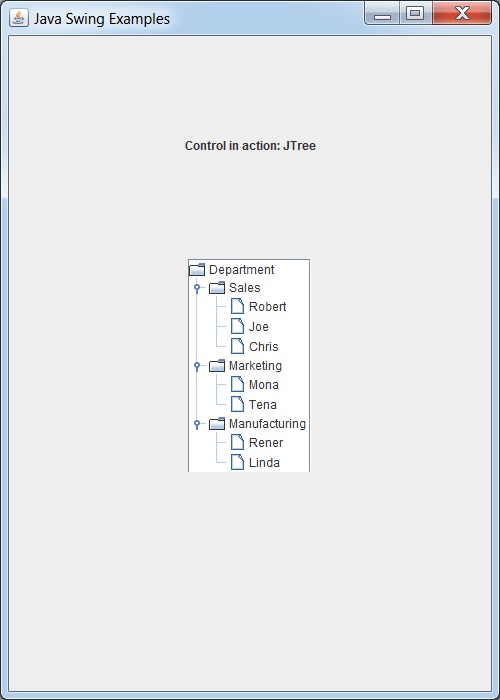

输出

swingexamples_tree.html
