带有符号的样条图

我们已经在 Highcharts 配置语法 章节中看到了用于绘制此图表的配置。 现在让我们考虑以下示例，以进一步理解带有符号的样条图。

配置

使用marker.symbol 属性将符号添加到一系列图表中。 它可以是预配置的符号，如"正方形"、"菱形"或图像的 URL。 也可以在系列数据中的任意点添加标记。

var series = [
   {
      name: 'Tokyo',
      marker: {
         symbol: 'square'
      },
      data: [7.0, 6.9, 9.5, 14.5, 18.2, 21.5, 25.2, {
         y: 26.5,
         marker: {
            symbol: 'url(http://www.highcharts.com/demo/gfx/sun.png)'
         }
      }, 23.3, 18.3, 13.9, 9.6]
   },
   {
      name: 'London',
      marker: {
         symbol: 'diamond'
      },
      data: [{
         y: 3.9,
         marker: {
            symbol: 'url(http://www.highcharts.com/demo/gfx/snow.png)'
         }
      }, 4.2, 5.7, 8.5, 11.9, 15.2, 17.0, 16.6, 14.2, 10.3, 6.6, 4.8]
   }
];

示例

app.component.ts

import { Component } from '@angular/core';
import * as Highcharts from 'highcharts';
@Component({
   selector: 'app-root',
   templateUrl: './app.component.html',
   styleUrls: ['./app.component.css']
})
export class AppComponent {
   highcharts = Highcharts;
   chartOptions = {
      chart: {
         type: "spline"
      },
      title: {
         text: "Monthly Average Temperature"
      },
      subtitle: {
         text: "Source: WorldClimate.com"
      },
      xAxis:{
         categories:["Jan", "Feb", "Mar", "Apr", "May", "Jun",
            "Jul", "Aug", "Sep", "Oct", "Nov", "Dec"]
      },
      yAxis: {
         title:{
            text:"Temperature °C"
         },
         labels: {
          formatter: function () {
             return this.value + '\xB0';
          }
       },
       lineWidth: 2
      },
      tooltip: {
        crosshairs: true,
        shared: true
      },
      plotOptions : {
        spline: {
           marker: {
               radius: 4,
               lineColor: '#666666',
               lineWidth: 1
            }
         }
      },
      series: [{
         name: 'Tokyo',
         marker: {
            symbol: 'square'
         },
         data: [7.0, 6.9, 9.5, 14.5, 18.2, 21.5, 25.2, {
               y: 26.5,
               marker: {
                  symbol: 'url(http://www.highcharts.com/demo/gfx/sun.png)'
               }
            }, 23.3, 18.3, 13.9, 9.6]
         },
         {
            name: 'London',
            marker: {
               symbol: 'diamond'
            },
            data: [{
               y: 3.9,
               marker: {
                  symbol: 'url(http://www.highcharts.com/demo/gfx/snow.png)'
               }
            }, 4.2, 5.7, 8.5, 11.9, 15.2, 17.0, 16.6, 14.2, 10.3, 6.6, 4.8]
         }
      ]
   };
}

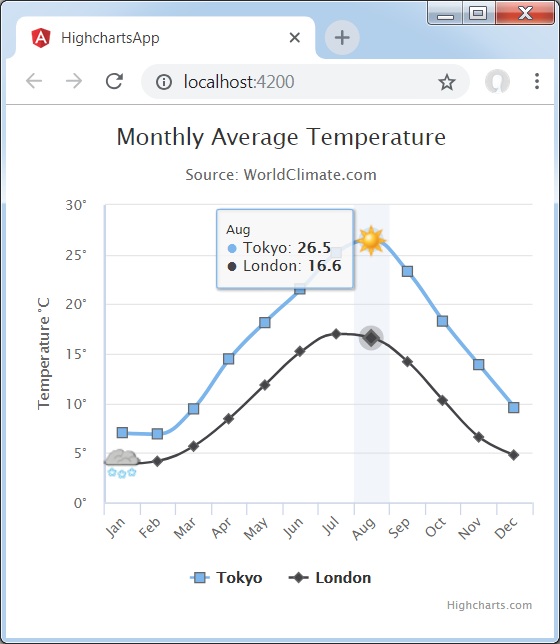

结果

验证结果。
