QTP - 自动化对象模型

QTP 本身可以使用 HP-QTP 提供的 COM 接口实现自动化。自动化对象模型是一组对象、方法和属性，可帮助测试人员控制配置设置并使用 QTP 接口执行脚本。可以控制的关键配置/操作（但不限于）列于下方 −

• 加载测试所需的所有插件
• 执行时使 QTP 可见
• 使用指定位置打开测试
• 关联函数库
• 指定通用对象同步超时
• 开始和结束迭代
• 启用/禁用智能识别
• 错误设置
• 数据表路径
• 恢复场景设置
• 日志跟踪设置

QTP 11.5x 提供了有关自动化对象模型的独家文档，可通过导航至"开始">> "所有程序">> 来参考。 "HP 软件" >> "HP Unified Functional Testing" >> "文档" >> "Unified Functional Testing Automation Reference"。

生成 AOM 脚本

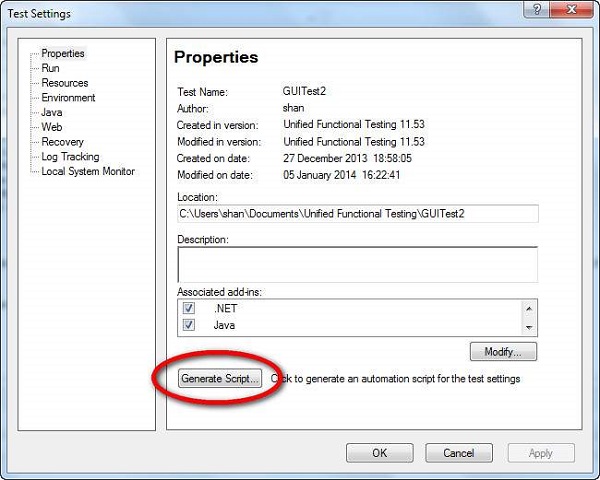

测试人员可以使用"生成脚本"选项从 QTP 本身生成 AOM 脚本。导航到"运行" >> "设置" >> "属性"选项卡 >> "生成脚本"，如下所示 −

示例

' 演示 AOM 的示例脚本
Dim App 'As Application
Set App = CreateObject("QuickTest.Application")
App.Launch
App.Visible = True

App.Test.Settings.Launchers("Web").Active = False
App.Test.Settings.Launchers("Web").Browser = "IE"
App.Test.Settings.Launchers("Web").Address = "http://easycalculation.com/"
App.Test.Settings.Launchers("Web").CloseOnExit = True

App.Test.Settings.Launchers("Windows Applications").Active = False
App.Test.Settings.Launchers("Windows Applications").Applications.RemoveAll
App.Test.Settings.Launchers("Windows Applications").RecordOnQTDescendants = True
App.Test.Settings.Launchers("Windows Applications").RecordOnExplorerDescendants = False
App.Test.Settings.Launchers("Windows Applications").RecordOnSpecifiedApplications = True

App.Test.Settings.Run.IterationMode = "rngAll"
App.Test.Settings.Run.StartIteration = 1
App.Test.Settings.Run.EndIteration = 1
App.Test.Settings.Run.ObjectSyncTimeOut = 20000
App.Test.Settings.Run.DisableSmartIdentification = False
App.Test.Settings.Run.OnError = "Dialog"

App.Test.Settings.Resources.DataTablePath = "<Default>"
App.Test.Settings.Resources.Libraries.RemoveAll

App.Test.Settings.Web.BrowserNavigationTimeout = 60000
App.Test.Settings.Web.ActiveScreenAccess.UserName = ""
App.Test.Settings.Web.ActiveScreenAccess.Password = ""

App.Test.Settings.Recovery.Enabled = True
App.Test.Settings.Recovery.SetActivationMode "OnError"
App.Test.Settings.Recovery.Add "D:\GUITest2
ecover_app_crash.qrs",
   "Recover_Application_Crash", 1
App.Test.Settings.Recovery.Item(1).Enabled = True

''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
' System Local Monitoring settings
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
App.Test.Settings.LocalSystemMonitor.Enable = false
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
' Log Tracking settings
''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''''
With App.Test.Settings.LogTracking
   .IncludeInResults = False
   .Port = 18081
   .IP = "127.0.0.1"
   .MinTriggerLevel = "ERROR"
   .EnableAutoConfig = False
   .RecoverConfigAfterRun = False
   .ConfigFile = ""
   .MinConfigLevel = "WARN"
End With
