Concordion - 在表上执行

Concordion 执行命令可用于以重复方式运行 concordion 装置的操作。例如，如果我们想以表格的形式用多个示例来说明一个需求，它将很有用。

考虑以下需求 −

<table>
   <tr><th>First Number</th><th>Second Number</th><th>Sum</th></tr>
   <tr><td>2</td><td>3</td><td>5</td></tr>
   <tr><td>4</td><td>5</td><td>9</td></tr>
</table>

如果我们要编写一个求和函数的规范，该函数将接受两个数字并输出它们的总和，则规范如下 −

<table>
   <tr><th>First Number</th><th>Second Number</th><th>Sum</th></tr>
   <tr concordion:execute = "#result = sum(#fullName)">
      <td concordion:set = "#firstNumber">2</td>
      <td concordion:set = "#secondNumber">3</td>
      <td concordion:assertEquals = "#result">5</td>
   </tr>
   <tr concordion:execute = "#result = sum(#fullName)">
      <td concordion:set = "#firstNumber">4</td>
      <td concordion:set = "#secondNumber">5</td>
      <td concordion:assertEquals = "#result">9</td>
   </tr>
</table>

Concordion 在解析文档时，会将临时变量 #firstNumber 的值设置为"2"，将 #secondNumber 的值设置为"3"。然后，它会使用 execute 命令执行以 #firstNumber 和 #secondNumber 为参数的 sum() 方法，并将结果设置为 #result 变量，并检查 #result 变量是否等于"5"。对每个表行元素重复此过程。

示例

让我们有一个可用的 Eclipse IDE，并按照下面给出的步骤创建一个 Concordion 应用程序 −

这是System.java文件的内容 −

package com.tutorialspoint;
public class System {
   public int sum(int firstNumber, int secondNumber) {
      return firstNumber + secondNumber;
   }
}

以下是SystemFixture.java文件的内容 −

package specs.tutorialspoint;

import org.concordion.integration.junit4.ConcordionRunner;
import org.junit.runner.RunWith;
import com.tutorialspoint.System;

@RunWith(ConcordionRunner.class)

public class SystemFixture {
   System system = new System();
   public int sum(int firstNumber, int secondNumber) {
      return system.sum(firstNumber, secondNumber);
   }
}

以下是System.html文件的内容 −

<html xmlns:concordion = "http://www.concordion.org/2007/concordion">
   <head>
      <link href = "../concordion.css" rel = "stylesheet" type = "text/css" />
   </head>

   <body>
      <h1>Calculator Specifications</h1>
      <p>We are building online calculator support in our website.</p>
      <p>Following is the requirement to add two numbers:</p>

      <div class = "example">
         <h3>Example</h3>
         <table>
            <tr>
               <th>First Number</th>
               <th>Second Number</th>
               <th>Sum</th>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">2</td>
               <td concordion:set = "#secondNumber">3</td>
               <td concordion:assertEquals = "#result">5</td>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">4</td>
               <td concordion:set = "#secondNumber">5</td>
               <td concordion:assertEquals = "#result">9</td>
            </tr>
         </table>
      </div>

   </body>

</html>

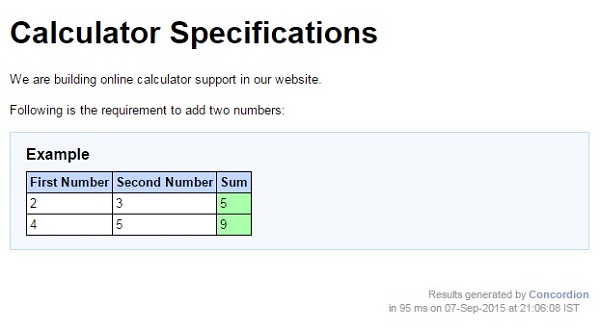

创建完源文件和规范文件后，让我们将应用程序作为 JUnit 测试运行。如果您的应用程序一切正常，则将产生以下结果 −

C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\concordion\specs	utorialspoint\System.html
Successes: 2, Failures: 0

System.html 是 Concordion 测试运行的输出。
