Concordion - Run 命令

Concordion Run 运行命令可用于将多个规范链接在一起并将它们显示在一个中央页面上。此命令可以运行所有规范，同时根据需要以绿色/红色/灰色显示链接的背景。

现在我们将创建两个规范并将它们链接在一起。我们将重用在 Concordion - Execute on List 和 Concordion - Execute on Table 章节中创建的规范作为系统规范和计算器规范。

示例

让我们有一个可用的 Eclipse IDE，并按照下面给出的步骤创建一个 Concordion 应用程序 −

这是System.java文件的内容 −

package com.tutorialspoint;
import org.concordion.api.MultiValueResult;

public class System {
   public MultiValueResult split(String userName){
      MultiValueResult result = new MultiValueResult();
      String[] words = userName.split(" ");
      result.with("firstName", words[0]).with("lastName", words[1]);
      return result;
   }

   public int sum(int firstNumber, int secondNumber) {
      return firstNumber + secondNumber;
   }
}

以下是SystemFixture.java文件的内容 −

package specs.tutorialspoint;

import org.concordion.api.MultiValueResult;
import org.concordion.integration.junit4.ConcordionRunner;
import org.junit.runner.RunWith;
import com.tutorialspoint.System;

@RunWith(ConcordionRunner.class)

public class SystemFixture {
   System system = new System();
   public MultiValueResult split(String userName){
      return system.split(userName);
   }
}

以下是 CalculatorFixture.java 文件的内容 −

package specs.tutorialspoint;

import org.concordion.integration.junit4.ConcordionRunner;
import org.junit.runner.RunWith;
import com.tutorialspoint.System;

@RunWith(ConcordionRunner.class)

public class CalculatorFixture {
   System system = new System();
   public int sum(int firstNumber, int secondNumber) {
      return system.sum(firstNumber, secondNumber);
   }
}

以下是System.html文件的内容 −

<html xmlns:concordion = "http://www.concordion.org/2007/concordion">
   <head>
      <link href = "../concordion.css" rel = "stylesheet" type = "text/css" />
   </head>

   <body>
      <h1>System Specifications</h1>
      <p>We are building specifications for our online
         order tracking application.</p>
      <p>Following is the requirement to split full name of a
         logged in user to its constituents by splitting name by whitespace:</p>

      <div class = "example">
         <h3>Example</h3>

         <ul>
            <li>The full name <span concordion:execute = "#result = split(#TEXT)">
               Robert De</span> is to be splited as
               <ul>
                  <li><span concordion:assertEquals = "#result.firstName">
                     Robert</span></li>
                  <li><span concordion:assertEquals = "#result.lastName">
                     De</span></li>
               </ul>
            </li>

            <li>The full name <span concordion:execute = "#result = split(#TEXT)">
               John Diere</span> is to be splited as
               <ul>
                  <li><span concordion:assertEquals = "#result.firstName">
                     John</span></li>
                  <li><span concordion:assertEquals = "#result.lastName">
                     Diere</span></li>
               </ul>
            </li>

         </ul>
      </div>

      <a concordion:run = "concordion" href = "Calculator.html">
         Calculator Service Specifications</a>
   </body>

</html>

以下是 Calculator.html 文件的内容 −

<html xmlns:concordion = "http://www.concordion.org/2007/concordion">
   <head>
      <link href = "../concordion.css" rel = "stylesheet" type = "text/css" />
   </head>

   <body>
      <h1>Calculator Specifications</h1>
      <p>We are building online calculator support in our website.</p>
      <p>Following is the requirement to add two numbers:</p>

      <div class = "example">
         <h3>Example</h3>

         <table>
            <tr>
               <th>First Number</th>
               <th>Second Number</th>
               <th>Sum</th>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">2</td>
               <td concordion:set = "#secondNumber">3</td>
               <td concordion:assertEquals = "#result">5</td>
            </tr>
            <tr concordion:execute = "#result = sum(#firstNumber, #secondNumber)">
               <td concordion:set = "#firstNumber">4</td>
               <td concordion:set = "#secondNumber">5</td>
               <td concordion:assertEquals = "#result">9</td>
            </tr>
         </table>

      </div>
   </body>

</html>

创建完源文件和规范文件后，让我们将应用程序作为 JUnit 测试运行。如果您的应用程序一切正常，则将产生以下结果 −

C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\concordion\specs	utorialspoint\System.html
Successes: 2, Failures: 0
C:\DOCUME~1\ADMINI~1\LOCALS~1\Temp\concordion\specs	utorialspoint\System.html
Successes: 6, Failures: 0

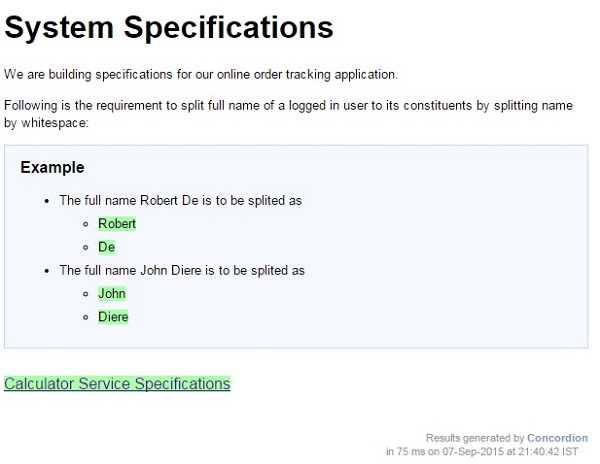

System.html 是 Concordion 测试运行的输出。

单击链接计算器服务规范。您将看到以下输出 −
