XAML - RichEditBox

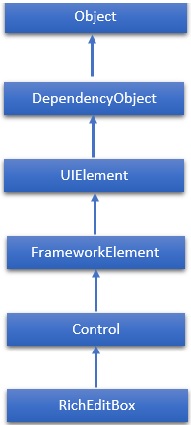

RichEditBox 是一个富文本编辑控件，支持格式化文本、超链接和其他富文本内容。WPF 项目不支持此控件。因此它将在 Windows 应用程序中实现。RichEditBox 类的层次继承如下 −

属性

事件

方法

示例

以下示例显示如何在 RichEditBox 中打开和保存 RTF 文件。下面是创建并初始化两个按钮和一个 RichEditBox 以及一些属性和事件的 XAML 代码。

<Page x:Class = "XAMLRichEditBox.MainPage"
   xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation"
   xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml"
   xmlns:local = "using:XAMLRichEditBox"
   xmlns:d = "http://schemas.microsoft.com/expression/blend/2008"
   xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006"
   mc:Ignorable = "d">

   <Grid Background = "{ThemeResource ApplicationPageBackgroundThemeBrush}">
      <Grid Margin = "120">
         <Grid.RowDefinitions>
            <RowDefinition Height="50"/>
            <RowDefinition/>
         </Grid.RowDefinitions>

         <StackPanel Orientation = "Horizontal">
            <Button Content = "Open file" Click = "OpenButton_Click"/>
            <Button Content = "Save file" Click = "SaveButton_Click"/>
         </StackPanel>

         <RichEditBox x:Name = "editor" Grid.Row = "1"/>
      </Grid>
   </Grid>

</Page>

以下是使用 C# 实现的不同事件和文件处理 −

using System;
using System.Collections.Generic;
using System.IO; using System.Linq;
using System.Runtime.InteropServices.WindowsRuntime;

using Windows.Foundation;
using Windows.Foundation.Collections;

using Windows.Storage;
using Windows.Storage.Pickers;
using Windows.Storage.Provider;

using Windows.UI.ViewManagement;
using Windows.UI.Xaml;
using Windows.UI.Xaml.Controls;
using Windows.UI.Xaml.Controls.Primitives;
using Windows.UI.Xaml.Data;
using Windows.UI.Xaml.Input;
using Windows.UI.Xaml.Media;
using Windows.UI.Xaml.Navigation;

// The Blank Page item template is documented at
http://go.microsoft.com/fwlink/?LinkId=234238

namespace XAMLRichEditBox {
   /// <summary>
      /// An empty page that can be used on its own or navigated to within a Frame.
   /// </summary>

   public sealed partial class MainPage : Page {
      public MainPage() {
         this.InitializeComponent();
      }
      private async void OpenButton_Click(object sender, RoutedEventArgs e) {
         // Open a text file.
         Windows.Storage.Pickers.FileOpenPicker open = new
            Windows.Storage.Pickers.FileOpenPicker();
         open.SuggestedStartLocation =
            Windows.Storage.Pickers.PickerLocationId.DocumentsLibrary;
         open.FileTypeFilter.Add(".rtf");
         Windows.Storage.StorageFile file = await open.PickSingleFileAsync();

         if (file != null) {
            Windows.Storage.Streams.IRandomAccessStream randAccStream = await
               file.OpenAsync(Windows.Storage.FileAccessMode.Read);

            // Load the file into the Document property of the RichEditBox.
            editor.Document.LoadFromStream(Windows.UI.Text.TextSetOptions.FormatRtf, randAccStream);
         }
      }
      private async void SaveButton_Click(object sender, RoutedEventArgs e) {
         if (((ApplicationView.Value != ApplicationViewState.Snapped) ||
            ApplicationView.TryUnsnap())) {

            FileSavePicker savePicker = new FileSavePicker();
            savePicker.SuggestedStartLocation = PickerLocationId.DocumentsLibrary;

            // Dropdown of file types the user can save the file as
            savePicker.FileTypeChoices.Add("Rich Text", new List <string>() { ".rtf" });

            // Default file name if the user does not type one in or select a file to replace
            savePicker.SuggestedFileName = "New Document";

            StorageFile file = await savePicker.PickSaveFileAsync();

            if (file != null) {
               // Prevent updates to the remote version of the file until we
               //finish making changes and call
               CompleteUpdatesAsync. CachedFileManager.DeferUpdates(file);

               // write to file
               Windows.Storage.Streams.IRandomAccessStream randAccStream = await
                  file.OpenAsync(Windows.Storage.FileAccessMode.ReadWrite);

               editor.Document.SaveToStream(Windows.UI.Text.TextGetOptions.FormatRtf, randAccStream);

               // Let Windows know that we're finished changing the file so the
               // other app can update the remote version of the file.

               FileUpdateStatus status = await CachedFileManager.CompleteUpdatesAsync(file);

               if (status != FileUpdateStatus.Complete) {
                  Windows.UI.Popups.MessageDialog
                     errorBox = new Windows.UI.Popups.MessageDialog(
                     "File " + file.Name + " couldn't be saved.");

                  await errorBox.ShowAsync();
               }
            }
         }
      }
   }
}

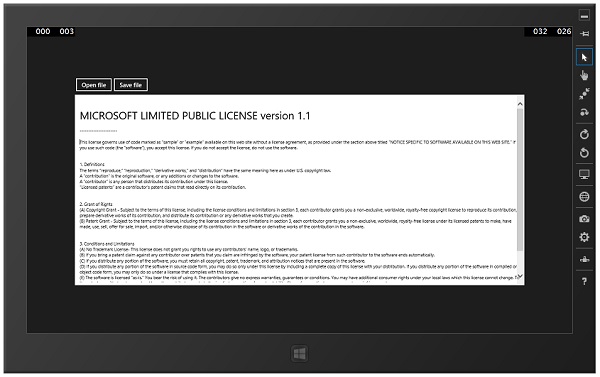

当您编译并执行上述代码时，将产生以下输出。 您可以在此应用程序中打开、编辑和保存任何 RTF 文件。

我们建议您执行上面的示例代码并尝试一些其他属性和事件。
