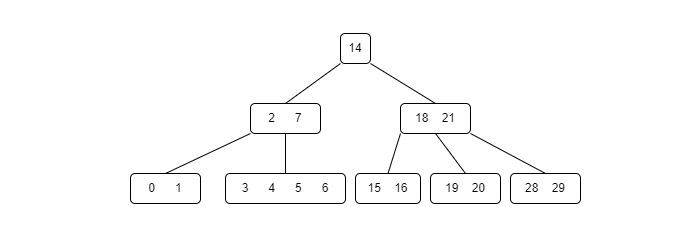

B 树
B 树是扩展的二叉搜索树，专门用于 m 路搜索，因为 B 树的阶数为"m"。树的阶数定义为一个节点可以容纳的最大子节点数。因此，B 树的高度相对 AVL 树和 RB 树的高度较小。
它们是二叉搜索树的一般形式，因为它包含多个键和两个子节点。
B 树的各种属性包括 −
由于树的阶数为 m，B 树中的每个节点最多可包含 m 个子节点和 (m-1) 个键。
B 树中的每个节点（根节点和叶节点除外）至少可包含 m/2 个子节点。
根节点必须至少有两个子节点。
B 树中的所有路径必须以同一级别结束，即叶节点必须位于同一级别。
B 树始终维护排序数据。
B 树也广泛用于磁盘访问，由于 B 树的高度较低，因此可以最大限度地减少磁盘访问时间。
注意 − 磁盘访问是指对存储信息的计算机磁盘的内存访问，而磁盘访问时间是指系统访问磁盘内存所需的时间。
B 树的基本操作
B 树支持的操作包括插入、删除和搜索，每个操作的时间复杂度为 O(log n)。
插入操作
B 树的插入操作与二叉搜索树类似，但元素会插入到同一个节点中，直到达到最大键值。插入操作使用以下过程 −

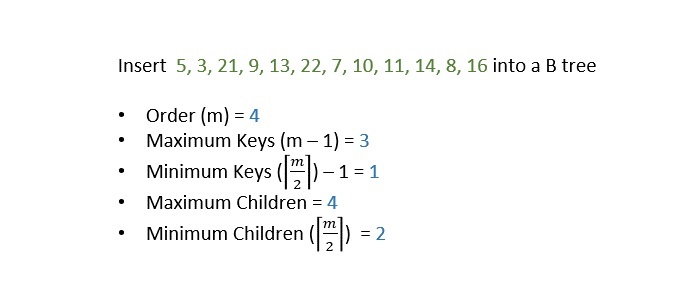

步骤 1 − 计算节点可容纳的最大键数 $\mathrm{\left ( m-1 ight )}$ 和最小键数 $\mathrm{\left ( \left \lceil \frac{m}{2} ight ceil-1 ight )}$，其中 m 表示 B 树的阶数。
步骤 2 −使用二分查找插入法将数据插入树中，一旦键达到最大数量，节点将被分成两半，中间键将成为内部节点，而左右键将成为其子节点。
步骤 3 − 所有叶节点必须位于同一层级。

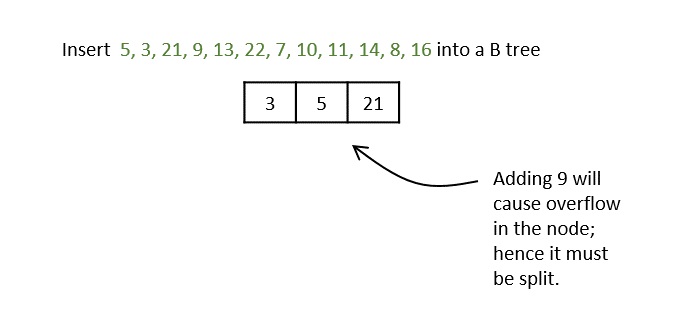

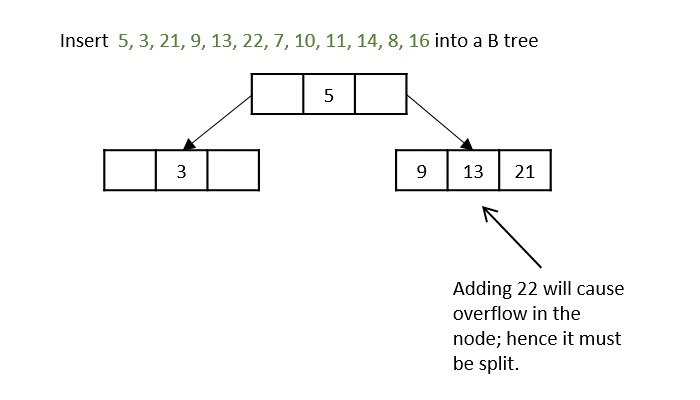

根据二分查找的原则，键 5、3、21、9、13 均已添加到节点中，但如果添加键 22，则会违反最大键属性。因此，节点被一分为二，中间键移至父节点，然后继续插入。

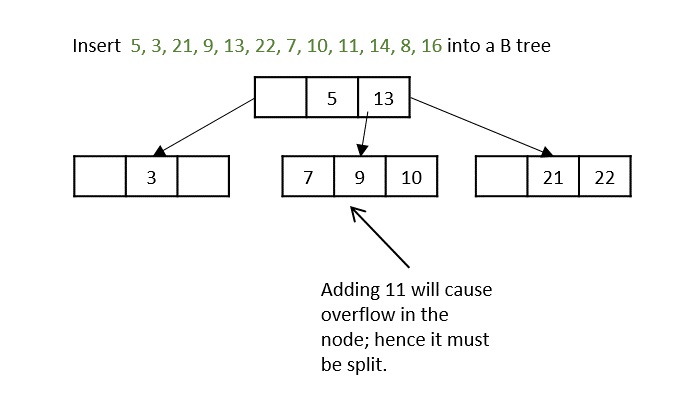

在插入 11 时出现另一个问题，因此节点被拆分，中间键移至父节点。

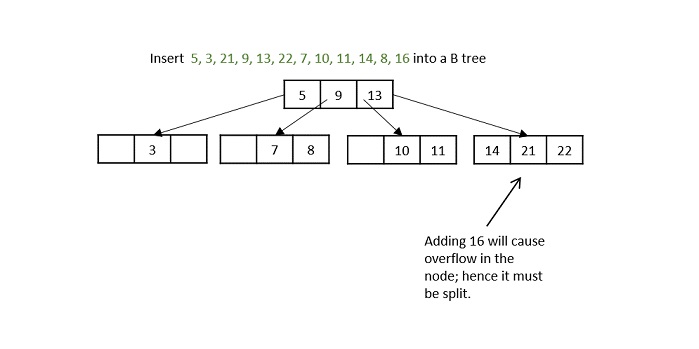

插入 16 时，即使节点被一分为二，父节点也会溢出，因为它已经达到了最大键数。因此，父节点首先被拆分，中间键成为根节点。然后，将叶节点一分为二，并将叶节点的中值移至其父节点。

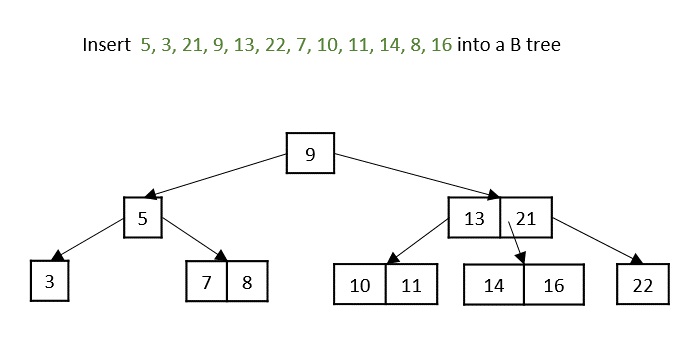

插入所有元素后，最终的 B 树就完成了。
示例
以下是此操作在各种编程语言中的实现 −
// B 树的 C 程序
#include <stdio.h>
#include <stdlib.h>
struct BTree {
//node declaration
int *d;
struct BTree **child_ptr;
int l;
int n;
};
struct BTree *r = NULL;
struct BTree *np = NULL;
struct BTree *x = NULL;
//创建节点
struct BTree* init() {
int i;
np = (struct BTree*)malloc(sizeof(struct BTree));
//order 6
np->d = (int*)malloc(6 * sizeof(int));
np->child_ptr = (struct BTree**)malloc(7 * sizeof(struct BTree*));
np->l = 1;
np->n = 0;
for (i = 0; i < 7; i++) {
np->child_ptr[i] = NULL;
}
return np;
}
//遍历树
void traverse(struct BTree *p) {
printf("
");
int i;
for (i = 0; i < p->n; i++) {
if (p->l == 0) {
traverse(p->child_ptr[i]);
}
printf(" %d", p->d[i]);
}
if (p->l == 0) {
traverse(p->child_ptr[i]);
}
printf("
");
}
//对树进行排序
void sort(int *p, int n) {
int i, j, t;
for (i = 0; i < n; i++) {
for (j = i; j <= n; j++) {
if (p[i] > p[j]) {
t = p[i];
p[i] = p[j];
p[j] = t;
}
}
}
}
int split_child(struct BTree *x, int i) {
int j, mid;
struct BTree *np1, *np3, *y;
np3 = init();
//创建新节点
np3->l = 1;
if (i == -1) {
mid = x->d[2];
//find mid
x->d[2] = 0;
x->n--;
np1 = init();
np1->l = 0;
x->l = 1;
for (j = 3; j < 6; j++) {
np3->d[j - 3] = x->d[j];
np3->child_ptr[j - 3] = x->child_ptr[j];
np3->n++;
x->d[j] = 0;
x->n--;
}
for (j = 0; j < 6; j++) {
x->child_ptr[j] = NULL;
}
np1->d[0] = mid;
np1->child_ptr[np1->n] = x;
np1->child_ptr[np1->n + 1] = np3;
np1->n++;
r = np1;
} else {
y = x->child_ptr[i];
mid = y->d[2];
y->d[2] = 0;
y->n--;
for (j = 3; j < 6; j++) {
np3->d[j - 3] = y->d[j];
np3->n++;
y->d[j] = 0;
y->n--;
}
x->child_ptr[i + 1] = y;
x->child_ptr[i + 1] = np3;
}
return mid;
}
void insert(int a) {
int i, t;
x = r;
if (x == NULL) {
r = init();
x = r;
} else {
if (x->l == 1 && x->n == 6) {
t = split_child(x, -1);
x = r;
for (i = 0; i < x->n; i++) {
if (a > x->d[i] && a < x->d[i + 1]) {
i++;
break;
} else if (a < x->d[0]) {
break;
} else {
continue;
}
}
x = x->child_ptr[i];
} else {
while (x->l == 0) {
for (i = 0; i < x->n; i++) {
if (a > x->d[i] && a < x->d[i + 1]) {
i++;
break;
} else if (a < x->d[0]) {
break;
} else {
continue;
}
}
if (x->child_ptr[i]->n == 6) {
t = split_child(x, i);
x->d[x->n] = t;
x->n++;
continue;
} else {
x = x->child_ptr[i];
}
}
}
}
x->d[x->n] = a;
sort(x->d, x->n);
x->n++;
}
int main() {
int i, n, t;
insert(10);
insert(20);
insert(30);
insert(40);
insert(50);
printf("Insertion Done");
printf("
B tree:");
traverse(r);
return 0;
}
输出
Insertion Done B tree: 10 20 30 40 50
#include<iostream>
using namespace std;
struct BTree {//node declaration
int *d;
BTree **child_ptr;
bool l;
int n;
}*r = NULL, *np = NULL, *x = NULL;
BTree* init() {//创建节点
int i;
np = new BTree;
np->d = new int[6];//order 6
np->child_ptr = new BTree *[7];
np->l = true;
np->n = 0;
for (i = 0; i < 7; i++) {
np->child_ptr[i] = NULL;
}
return np;
}
void traverse(BTree *p) { //遍历树
cout<<endl;
int i;
for (i = 0; i < p->n; i++) {
if (p->l == false) {
traverse(p->child_ptr[i]);
}
cout << " " << p->d[i];
}
if (p->l == false) {
traverse(p->child_ptr[i]);
}
cout<<endl;
}
void sort(int *p, int n){ //对树进行排序
int i, j, t;
for (i = 0; i < n; i++) {
for (j = i; j <= n; j++) {
if (p[i] >p[j]) {
t = p[i];
p[i] = p[j];
p[j] = t;
}
}
}
}
int split_child(BTree *x, int i) {
int j, mid;
BTree *np1, *np3, *y;
np3 = init();//创建新节点
np3->l = true;
if (i == -1) {
mid = x->d[2];//find mid
x->d[2] = 0;
x->n--;
np1 = init();
np1->l= false;
x->l= true;
for (j = 3; j < 6; j++) {
np3->d[j - 3] = x->d[j];
np3->child_ptr[j - 3] = x->child_ptr[j];
np3->n++;
x->d[j] = 0;
x->n--;
}
for (j = 0; j < 6; j++) {
x->child_ptr[j] = NULL;
}
np1->d[0] = mid;
np1->child_ptr[np1->n] = x;
np1->child_ptr[np1->n + 1] = np3;
np1->n++;
r = np1;
} else {
y = x->child_ptr[i];
mid = y->d[2];
y->d[2] = 0;
y->n--;
for (j = 3; j <6 ; j++) {
np3->d[j - 3] = y->d[j];
np3->n++;
y->d[j] = 0;
y->n--;
}
x->child_ptr[i + 1] = y;
x->child_ptr[i + 1] = np3;
}
return mid;
}
void insert(int a) {
int i, t;
x = r;
if (x == NULL) {
r = init();
x = r;
} else {
if (x->l== true && x->n == 6) {
t = split_child(x, -1);
x = r;
for (i = 0; i < (x->n); i++) {
if ((a >x->d[i]) && (a < x->d[i + 1])) {
i++;
break;
} else if (a < x->d[0]) {
break;
} else {
continue;
}
}
x = x->child_ptr[i];
} else {
while (x->l == false) {
for (i = 0; i < (x->n); i++) {
if ((a >x->d[i]) && (a < x->d[i + 1])) {
i++;
break;
} else if (a < x->d[0]) {
break;
} else {
continue;
}
}
if ((x->child_ptr[i])->n == 6) {
t = split_child(x, i);
x->d[x->n] = t;
x->n++;
continue;
} else {
x = x->child_ptr[i];
}
}
}
}
x->d[x->n] = a;
sort(x->d, x->n);
x->n++;
}
int main() {
int i, n, t;
insert(10);
insert(20);
insert(30);
insert(40);
insert(50);
cout<<"Insertion Done";
cout<<"
B tree:";
traverse(r);
}
输出
Insertion Done B tree: 10 20 30 40 50
//B 树的 Java 代码
import java.util.Arrays;
class BTree {
private int[] d;
private BTree[] child_ptr;
private boolean l;
private int n;
public BTree() {
d = new int[6]; // order 6
child_ptr = new BTree[7];
l = true;
n = 0;
Arrays.fill(child_ptr, null);
}
public void traverse() {
System.out.println("B tree: ");
for (int i = 0; i < n; i++) {
if (!l) {
child_ptr[i].traverse();
}
System.out.print(d[i] + " ");
}
if (!l) {
child_ptr[n].traverse();
}
System.out.println();
}
public void sort() {
Arrays.sort(d, 0, n);
}
public int splitChild(int i) {
int j, mid;
BTree np1, np3, y;
np3 = new BTree();
np3.l = true;
if (i == -1) {
mid = d[2];
d[2] = 0;
n--;
np1 = new BTree();
np1.l = false;
l = true;
for (j = 3; j < 6; j++) {
np3.d[j - 3] = d[j];
np3.n++;
d[j] = 0;
n--;
}
for (j = 0; j < 6; j++) {
np3.child_ptr[j] = child_ptr[j + 3];
child_ptr[j + 3] = null;
}
np1.d[0] = mid;
np1.child_ptr[0] = this;
np1.child_ptr[1] = np3;
np1.n++;
return mid;
} else {
y = child_ptr[i];
mid = y.d[2];
y.d[2] = 0;
y.n--;
for (j = 3; j < 6; j++) {
np3.d[j - 3] = y.d[j];
np3.n++;
y.d[j] = 0;
y.n--;
}
child_ptr[i + 1] = y;
child_ptr[i + 2] = np3;
return mid;
}
}
public void insert(int a) {
int i, t;
BTree x = this;
if (x.l && x.n == 6) {
t = x.splitChild(-1);
x = this;
for (i = 0; i > x.n; i++) {
if (a > x.d[i] && a < x.d[i + 1]) {
i++;
break;
} else if (a < x.d[0]) {
break;
}
}
x = x.child_ptr[i];
} else {
while (!x.l) {
for (i = 0; i < x.n; i++) {
if (a > x.d[i] && a < x.d[i + 1]) {
i++;
break;
} else if (a < x.d[0]) {
break;
}
}
if (x.child_ptr[i].n == 6) {
t = x.splitChild(i);
x.d[x.n] = t;
x.n++;
continue;
}
x = x.child_ptr[i];
}
}
x.d[x.n] = a;
x.sort();
x.n++;
}
}
public class Main {
public static void main(String[] args) {
BTree bTree = new BTree();
bTree.insert(20);
bTree.insert(10);
bTree.insert(40);
bTree.insert(30);
bTree.insert(50);
System.out.print("Insertion Done
");
// 重复值，忽略
//调用遍历方法
bTree.traverse();
}
}
输出
Insertion Done B tree: 10 20 30 40 50
#python program for B treesa
class BTree:
def __init__(self):
#node declartion
self.d = [0] * 6
self.child_ptr = [None] * 7
self.l = True
self.n = 0
#创建节点
def init():
np = BTree()
np.l = True
np.n = 0
return np
#遍历树
def traverse(p):
if p is not None:
for i in range(p.n):
if not p.l:
traverse(p.child_ptr[i])
print(p.d[i], end=" ")
if not p.l:
traverse(p.child_ptr[p.n])
#对树进行排序
def sort(p, n):
for i in range(n):
for j in range(i, n+1):
if p[i] > p[j]:
p[i], p[j] = p[j], p[i]
def split_child(x, i):
np3 = init()
#创建新节点
np3.l = True
if i == -1:
mid = x.d[2]
#find mid
x.d[2] = 0
x.n -= 1
np1 = init()
np1.l = False
x.l = True
for j in range(3, 6):
np3.d[j-3] = x.d[j]
np3.child_ptr[j-3] = x.child_ptr[j]
np3.n += 1
x.d[j] = 0
x.n -= 1
for j in range(6):
x.child_ptr[j] = None
np1.d[0] = mid
np1.child_ptr[np1.n] = x
np1.child_ptr[np1.n + 1] = np3
np1.n += 1
return np1
else:
y = x.child_ptr[i]
mid = y.d[2]
y.d[2] = 0
y.n -= 1
for j in range(3, 6):
np3.d[j-3] = y.d[j]
np3.n += 1
y.d[j] = 0
y.n -= 1
x.child_ptr[i + 1] = y
x.child_ptr[i + 1] = np3
return mid
def insert(a):
global r, x
if r is None:
r = init()
x = r
else:
if x.l and x.n == 6:
t = split_child(x, -1)
x = r
for i in range(x.n):
if a > x.d[i] and a < x.d[i + 1]:
i += 1
break
elif a < x.d[0]:
break
else:
continue
x = x.child_ptr[i]
else:
while not x.l:
for i in range(x.n):
if a > x.d[i] and a < x.d[i + 1]:
i += 1
break
elif a < x.d[0]:
break
else:
continue
if x.child_ptr[i].n == 6:
t = split_child(x, i)
x.d[x.n] = t
x.n += 1
continue
else:
x = x.child_ptr[i]
x.d[x.n] = a
sort(x.d, x.n)
x.n += 1
if __name__ == '__main__':
r = None
x = None
insert(10)
insert(20)
insert(30)
insert(40)
insert(50)
print("Insertion Done")
print("B tree:")
traverse(r)
输出
Insertion Done B tree: 10 20 30 40 50
删除操作
B 树中的删除操作与二叉搜索树的删除操作略有不同。从 B 树中删除节点的过程如下：−

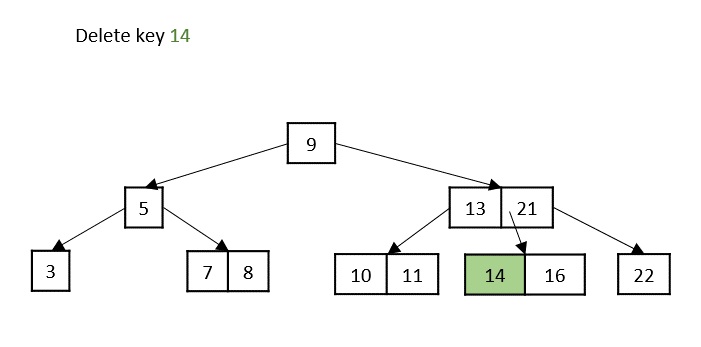

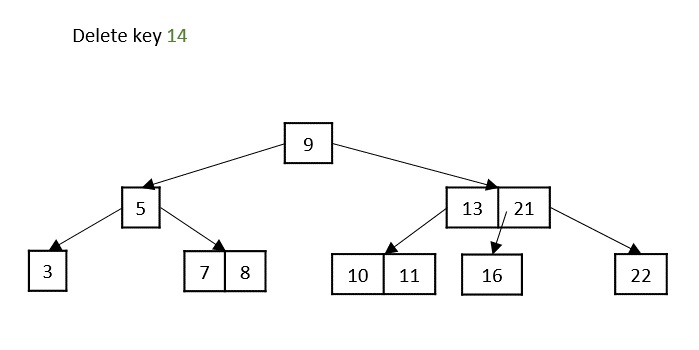

情况 1 − 如果要删除的键位于叶节点中，且删除操作不违反最小键属性，则直接删除该节点。

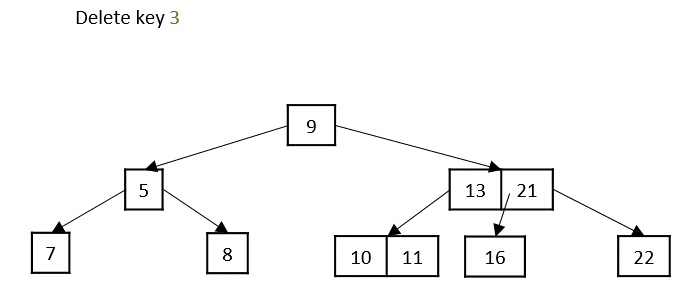

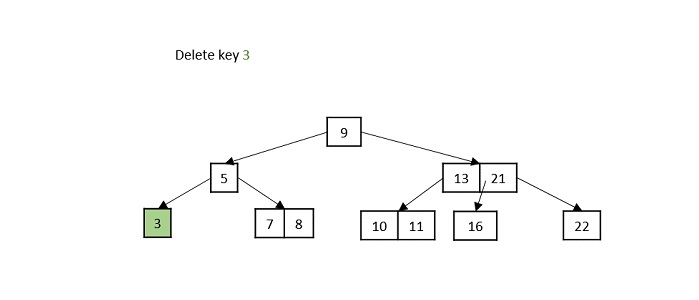

情况 2 −如果待删除的键位于叶节点，但删除操作违反了最小键属性，则从其左兄弟节点或右兄弟节点借用一个键。如果两个兄弟节点都恰好具有最小键数，则合并其中一个节点。

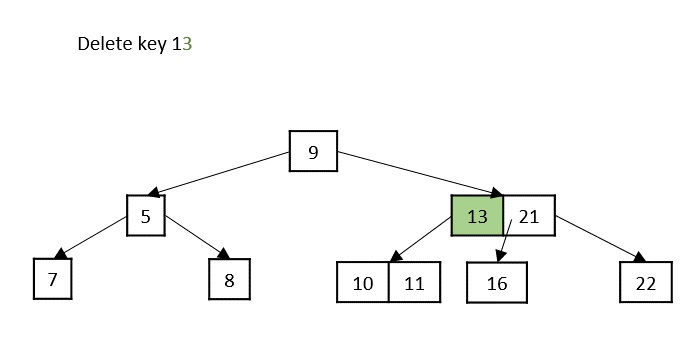

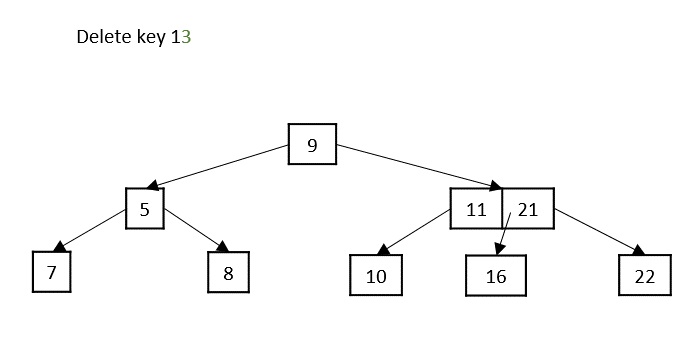

情况 3 − 如果待删除的键位于内部节点，则根据哪个子节点拥有的键更多，将其替换为左子节点或右子节点中的键。但如果两个子节点都具有最小数量的键，则将它们合并在一起。

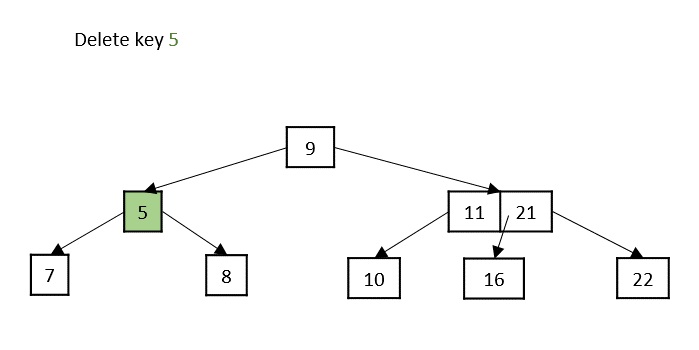

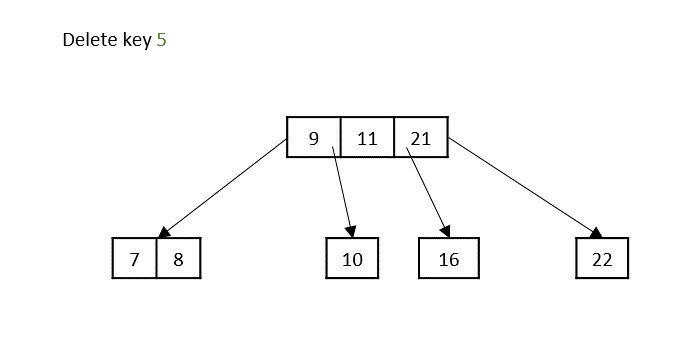

情况 4 − 如果要删除的键位于违反最小键属性的内部节点中，并且其子节点和兄弟节点都具有最小数量的键，则合并子节点。然后将其兄弟节点与其父节点合并。
示例
以下是此操作在各种编程语言中的实现 −
//BTree中的删除操作
#include <stdio.h>
#include <stdlib.h>
#define MAX 3
#define MIN 2
struct BTreeNode {
int item[MAX + 1], count;
struct BTreeNode *linker[MAX + 1];
};
struct BTreeNode *root;
// 创建节点
struct BTreeNode *createNode(int item, struct BTreeNode *child) {
struct BTreeNode *newNode;
newNode = (struct BTreeNode *)malloc(sizeof(struct BTreeNode));
newNode->item[1] = item;
newNode->count = 1;
newNode->linker[0] = root;
newNode->linker[1] = child;
return newNode;
}
// adding value to the node
void addValToNode(int item, int pos, struct BTreeNode *node,
struct BTreeNode *child) {
int j = node->count;
while (j > pos) {
node->item[j + 1] = node->item[j];
node->linker[j + 1] = node->linker[j];
j--;
}
node->item[j + 1] = item;
node->linker[j + 1] = child;
node->count++;
}
// Spliting the node
void splitNode(int item, int *pval, int pos, struct BTreeNode *node,
struct BTreeNode *child, struct BTreeNode **newNode) {
int median, j;
if (pos > MIN)
median = MIN + 1;
else
median = MIN;
*newNode = (struct BTreeNode *)malloc(sizeof(struct BTreeNode));
j = median + 1;
while (j <= MAX) {
(*newNode)->item[j - median] = node->item[j];
(*newNode)->linker[j - median] = node->linker[j];
j++;
}
node->count = median;
(*newNode)->count = MAX - median;
if (pos <= MIN) {
addValToNode(item, pos, node, child);
} else {
addValToNode(item, pos - median, *newNode, child);
}
*pval = node->item[node->count];
(*newNode)->linker[0] = node->linker[node->count];
node->count--;
}
// 设置节点中的值
int setValueInNode(int item, int *pval,
struct BTreeNode *node, struct BTreeNode **child) {
int pos;
if (!node) {
*pval = item;
*child = NULL;
return 1;
}
if (item < node->item[1]) {
pos = 0;
} else {
for (pos = node->count;
(item < node->item[pos] && pos > 1); pos--);
if (item == node->item[pos]) {
printf("Duplicates not allowed
");
return 0;
}
}
if (setValueInNode(item, pval, node->linker[pos], child)) {
if (node->count < MAX) {
addValToNode(*pval, pos, node, *child);
} else {
splitNode(*pval, pval, pos, node, *child, child);
return 1;
}
}
return 0;
}
// 在 BTree 中插入元素
void insert(int item) {
int flag, i;
struct BTreeNode *child;
flag = setValueInNode(item, &i, root, &child);
if (flag)
root = createNode(i, child);
}
// Copy the successor
void copySuccessor(struct BTreeNode *myNode, int pos) {
struct BTreeNode *dummy;
dummy = myNode->linker[pos];
for (; dummy->linker[0] != NULL;)
dummy = dummy->linker[0];
myNode->item[pos] = dummy->item[1];
}
// 删除 BTree 中的值
void removeVal(struct BTreeNode *myNode, int pos) {
int i = pos + 1;
while (i <= myNode->count) {
myNode->item[i - 1] = myNode->item[i];
myNode->linker[i - 1] = myNode->linker[i];
i++;
}
myNode->count--;
}
// right shift
void rightShift(struct BTreeNode *myNode, int pos) {
struct BTreeNode *x = myNode->linker[pos];
int j = x->count;
while (j > 0) {
x->item[j + 1] = x->item[j];
x->linker[j + 1] = x->linker[j];
}
x->item[1] = myNode->item[pos];
x->linker[1] = x->linker[0];
x->count++;
x = myNode->linker[pos - 1];
myNode->item[pos] = x->item[x->count];
myNode->linker[pos] = x->linker[x->count];
x->count--;
return;
}
// left shift
void leftShift(struct BTreeNode *myNode, int pos) {
int j = 1;
struct BTreeNode *x = myNode->linker[pos - 1];
x->count++;
x->item[x->count] = myNode->item[pos];
x->linker[x->count] = myNode->linker[pos]->linker[0];
x = myNode->linker[pos];
myNode->item[pos] = x->item[1];
x->linker[0] = x->linker[1];
x->count--;
while (j <= x->count) {
x->item[j] = x->item[j + 1];
x->linker[j] = x->linker[j + 1];
j++;
}
return;
}
// Merge the nodes
void mergeNodes(struct BTreeNode *myNode, int pos) {
int j = 1;
struct BTreeNode *x1 = myNode->linker[pos], *x2 = myNode->linker[pos - 1];
x2->count++;
x2->item[x2->count] = myNode->item[pos];
x2->linker[x2->count] = myNode->linker[0];
while (j <= x1->count) {
x2->count++;
x2->item[x2->count] = x1->item[j];
x2->linker[x2->count] = x1->linker[j];
j++;
j = pos;
while (j < myNode->count) {
myNode->item[j] = myNode->item[j + 1];
myNode->linker[j] = myNode->linker[j + 1];
j++;
}
myNode->count--;
free(x1);
}
}
// 调整BTree中的节点
void adjustNode(struct BTreeNode *myNode, int pos) {
if (!pos) {
if (myNode->linker[1]->count > MIN) {
leftShift(myNode, 1);
} else {
mergeNodes(myNode, 1);
}
} else {
if (myNode->count != pos) {
if (myNode->linker[pos - 1]->count > MIN) {
rightShift(myNode, pos);
} else {
if (myNode->linker[pos + 1]->count > MIN) {
leftShift(myNode, pos + 1);
} else {
mergeNodes(myNode, pos);
}
}
} else {
if (myNode->linker[pos - 1]->count > MIN)
rightShift(myNode, pos);
else
mergeNodes(myNode, pos);
}
}
}
// 从节点中删除一个值
int delValFromNode(int item, struct BTreeNode *myNode) {
int pos, flag = 0;
if (myNode) {
if (item < myNode->item[1]) {
pos = 0;
flag = 0;
}else {
for (pos = myNode->count; (item < myNode->item[pos] && pos > 1); pos--);
if (item == myNode->item[pos]) {
flag = 1;
} else {
flag = 0;
}
}
if (flag) {
if (myNode->linker[pos - 1]) {
copySuccessor(myNode, pos);
flag = delValFromNode(myNode->item[pos], myNode->linker[pos]);
if (flag == 0) {
printf("Given data is not present in B-Tree
");
}
} else {
removeVal(myNode, pos);
}
} else {
flag = delValFromNode(item, myNode->linker[pos]);
}
if (myNode->linker[pos]) {
if (myNode->linker[pos]->count < MIN)
adjustNode(myNode, pos);
}
}
return flag;
}
// B树中的删除操作
void delete (int item, struct BTreeNode *myNode) {
struct BTreeNode *tmp;
if (!delValFromNode(item, myNode)) {
printf("Not present
");
return;
} else {
if (myNode->count == 0) {
tmp = myNode;
myNode = myNode->linker[0];
free(tmp);
}
}
root = myNode;
return;
}
void display(struct BTreeNode *myNode) {
int i;
if (myNode) {
for (i = 0; i < myNode->count; i++) {
display(myNode->linker[i]);
printf("%d ", myNode->item[i + 1]);
}
display(myNode->linker[i]);
}
}
int main() {
int item, ch;
insert(8);
insert(9);
insert(10);
insert(11);
insert(15);
insert(16);
insert(17);
insert(18);
insert(20);
insert(23);
printf("Insertion Done");
printf("
删除前的BTree元素：
");
display(root);
int ele = 20;
printf("
待删除的元素： %d", ele);
delete (ele, root);
printf("
删除前的BTree元素：
");
display(root);
}
输出
Insertion Done 删除前的BTree元素： 8 9 10 11 15 16 17 18 20 23 待删除的元素： 20 删除前的BTree元素： 8 9 10 11 15 16 17 18 23 8 9 23
#include <iostream>
using namespace std;
class BTreeNode {
int *keys;
int t;
BTreeNode **C;
int n;
bool leaf;
public:
BTreeNode(int _t, bool _leaf);
void display();
int findKey(int k);
void insertNonFull(int k);
void splitChild(int i, BTreeNode *y);
void deletion(int k);
void removeFromLeaf(int idx);
void removeFromNonLeaf(int idx);
int getPredecessor(int idx);
int getSuccessor(int idx);
void fill(int idx);
void borrowFromPrev(int idx);
void borrowFromNext(int idx);
void merge(int idx);
friend class BTree;
};
class BTree {
BTreeNode *root;
int t;
public:
BTree(int _t) {
root = NULL;
t = _t;
}
void display() {
if (root != NULL)
root->display();
}
void insert(int k);
void deletion(int k);
};
// B tree node
BTreeNode::BTreeNode(int t1, bool leaf1) {
t = t1;
leaf = leaf1;
keys = new int[2 * t - 1];
C = new BTreeNode *[2 * t];
n = 0;
}
// Find the key
int BTreeNode::findKey(int k) {
int idx = 0;
while (idx < n && keys[idx] < k)
++idx;
return idx;
}
// 删除操作
void BTreeNode::deletion(int k) {
int idx = findKey(k);
if (idx < n && keys[idx] == k) {
if (leaf)
removeFromLeaf(idx);
else
removeFromNonLeaf(idx);
}else {
if (leaf) {
cout << "The key " << k << " is does not exist in the tree
";
return;
}
bool flag = ((idx == n) ? true : false);
if (C[idx]->n < t)
fill(idx);
if (flag && idx > n)
C[idx - 1]->deletion(k);
else
C[idx]->deletion(k);
}
return;
}
// 从叶子节点移除
void BTreeNode::removeFromLeaf(int idx) {
for (int i = idx + 1; i < n; ++i)
keys[i - 1] = keys[i];
n--;
return;
}
// 从非叶节点删除
void BTreeNode::removeFromNonLeaf(int idx) {
int k = keys[idx];
if (C[idx]->n >= t) {
int pred = getPredecessor(idx);
keys[idx] = pred;
C[idx]->deletion(pred);
}
else if (C[idx + 1]->n >= t) {
int succ = getSuccessor(idx);
keys[idx] = succ;
C[idx + 1]->deletion(succ);
}
else {
merge(idx);
C[idx]->deletion(k);
}
return;
}
int BTreeNode::getPredecessor(int idx) {
BTreeNode *cur = C[idx];
while (!cur->leaf)
cur = cur->C[cur->n];
return cur->keys[cur->n - 1];
}
int BTreeNode::getSuccessor(int idx) {
BTreeNode *cur = C[idx + 1];
while (!cur->leaf)
cur = cur->C[0];
return cur->keys[0];
}
void BTreeNode::fill(int idx) {
if (idx != 0 && C[idx - 1]->n >= t)
borrowFromPrev(idx);
else if (idx != n && C[idx + 1]->n >= t)
borrowFromNext(idx);
else {
if (idx != n)
merge(idx);
else
merge(idx - 1);
}
return;
}
// 从前一个借用
void BTreeNode::borrowFromPrev(int idx) {
BTreeNode *child = C[idx];
BTreeNode *sibling = C[idx - 1];
for (int i = child->n - 1; i >= 0; --i)
child->keys[i + 1] = child->keys[i];
if (!child->leaf) {
for (int i = child->n; i >= 0; --i)
child->C[i + 1] = child->C[i];
}
child->keys[0] = keys[idx - 1];
if (!child->leaf)
child->C[0] = sibling->C[sibling->n];
keys[idx - 1] = sibling->keys[sibling->n - 1];
child->n += 1;
sibling->n -= 1;
return;
}
// 从下一个借用
void BTreeNode::borrowFromNext(int idx) {
BTreeNode *child = C[idx];
BTreeNode *sibling = C[idx + 1];
child->keys[(child->n)] = keys[idx];
if (!(child->leaf))
child->C[(child->n) + 1] = sibling->C[0];
keys[idx] = sibling->keys[0];
for (int i = 1; i < sibling->n; ++i)
sibling->keys[i - 1] = sibling->keys[i];
if (!sibling->leaf) {
for (int i = 1; i <= sibling->n; ++i)
sibling->C[i - 1] = sibling->C[i];
}
child->n += 1;
sibling->n -= 1;
return;
}
// 合并
void BTreeNode::merge(int idx) {
BTreeNode *child = C[idx];
BTreeNode *sibling = C[idx + 1];
child->keys[t - 1] = keys[idx];
for (int i = 0; i < sibling->n; ++i)
child->keys[i + t] = sibling->keys[i];
if (!child->leaf) {
for (int i = 0; i <= sibling->n; ++i)
child->C[i + t] = sibling->C[i];
}
for (int i = idx + 1; i < n; ++i)keys[i - 1] = keys[i];
for (int i = idx + 2; i <= n; ++i)
C[i - 1] = C[i];
child->n += sibling->n + 1;
n--;
delete (sibling);
return;
}
// 插入操作
void BTree::insert(int k) {
if (root == NULL) {
root = new BTreeNode(t, true);
root->keys[0] = k;
root->n = 1;
} else {
if (root->n == 2 * t - 1) {
BTreeNode *s = new BTreeNode(t, false);
s->C[0] = root;
s->splitChild(0, root);
int i = 0;
if (s->keys[0] < k)
i++;
s->C[i]->insertNonFull(k);
root = s;
} else
root->insertNonFull(k);
}
}
// 插入不完整
void BTreeNode::insertNonFull(int k) {
int i = n - 1;
if (leaf == true) {
while (i >= 0 && keys[i] > k) {
keys[i + 1] = keys[i];
i--;
}
keys[i + 1] = k;
n = n + 1;
} else {
while (i >= 0 && keys[i] > k)
i--;
if (C[i + 1]->n == 2 * t - 1) {
splitChild(i + 1, C[i + 1]);
if (keys[i + 1] < k)
i++;
}
C[i + 1]->insertNonFull(k);
}
}
// Split child
void BTreeNode::splitChild(int i, BTreeNode *y) {
BTreeNode *z = new BTreeNode(y->t, y->leaf);
z->n = t - 1;
for (int j = 0; j < t - 1; j++)
z->keys[j] = y->keys[j + t];
if (y->leaf == false) {
for (int j = 0; j < t; j++)
z->C[j] = y->C[j + t];
}
y->n = t - 1;
for (int j = n; j >= i + 1; j--)
C[j + 1] = C[j];
C[i + 1] = z;
for (int j = n - 1; j >= i; j--)
keys[j + 1] = keys[j];
keys[i] = y->keys[t - 1];
n = n + 1;
}
// 显示 BTree
void BTreeNode::display() {
int i;
for (i = 0; i < n; i++) {
if (leaf == false)
C[i]->display();
cout <<keys[i]<<" ";
}
if (leaf == false)
C[i]->display();
}
// 删除操作
void BTree::deletion(int k) {
if (!root) {
cout << "The tree is empty
";
return;
}
root->deletion(k);
if (root->n == 0) {
BTreeNode *tmp = root;
if (root->leaf)
root = NULL;
else
root = root->C[0];
delete tmp;
}
return;
}
int main() {
BTree t(3);
t.insert(8);
t.insert(9);
t.insert(10);
t.insert(11);
t.insert(15);
t.insert(16);
t.insert(17);
t.insert(18);
t.insert(20);
t.insert(23);
cout << "Insertion Done";
cout << "
删除前的BTree元素："<<endl;
t.display();
int ele = 20;
cout << "
待删除的元素： "<<ele;
t.deletion(20);
cout << "
删除前的BTree元素："<<endl;
t.display();
}
输出
Insertion Done 删除前的BTree元素： 8 9 10 11 15 16 17 18 20 23 待删除的元素： 20 删除前的BTree元素： 8 9 10 11 15 16 17 18 23
import java.util.*;
public class BTree {
private int T;
public class Node {
int n;
int key[] = new int[2 * T - 1];
Node child[] = new Node[2 * T];
boolean leaf = true;
public int Find(int k) {
for (int i = 0; i < this.n; i++) {
if (this.key[i] == k) {
return i;
}
}
return -1;
};
}
public BTree(int t) {
T = t;
root = new Node();
root.n = 0;
root.leaf = true;
}
private Node root;
//在B树中搜索键
private Node search_key(Node x, int key) {
int i = 0;
if (x == null)
return x;
for (i = 0; i < x.n; i++) {
if (key < x.key[i]) {
break;
}
if (key == x.key[i]) {
return x;
}
}
if (x.leaf) {
return null;
} else {
return search_key(x.child[i], key);
}
}
//spliting child
private void Split_child(Node x, int pos, Node y) {
Node z = new Node();
z.leaf = y.leaf;
z.n = T - 1;
for (int j = 0; j < T - 1; j++) {
z.key[j] = y.key[j + T];
}
if (!y.leaf) {
for (int j = 0; j < T; j++) {
z.child[j] = y.child[j + T];
}
}
y.n = T - 1;
for (int j = x.n; j >= pos + 1; j--) {
x.child[j + 1] = x.child[j];
}
x.child[pos + 1] = z;
for (int j = x.n - 1; j >= pos; j--) {
x.key[j + 1] = x.key[j];
}
x.key[pos] = y.key[T - 1];
x.n = x.n + 1;
}
//在 BTree 中插入元素
public void insert(final int key) {
Node r = root;
if (r.n == 2 * T - 1) {
Node s = new Node();
root = s;
s.leaf = false;
s.n = 0;
s.child[0] = r;
Split_child(s, 0, r);
insert_node(s, key);
} else {
insert_node(r, key);
}
}
//在BTree中插入节点
final private void insert_node(Node x, int k) {
if (x.leaf) {
int i = 0;
for (i = x.n - 1; i >= 0 && k < x.key[i]; i--) {
x.key[i + 1] = x.key[i];
}
x.key[i + 1] = k;
x.n = x.n + 1;
} else {
int i = 0;
for (i = x.n - 1; i >= 0 && k < x.key[i]; i--) {
}
;
i++;
Node tmp = x.child[i];
if (tmp.n == 2 * T - 1) {
Split_child(x, i, tmp);
if (k > x.key[i]) {
i++;
}
}
insert_node(x.child[i], k);
}
}
//显示B树
public void display() {
display(root);
}
private void delete(Node x, int key) {
int pos = x.Find(key);
if (pos != -1) {
if (x.leaf) {
int i = 0;
for (i = 0; i < x.n && x.key[i] != key; i++) {
}
;
for (; i < x.n; i++) {
if (i != 2 * T - 2) {
x.key[i] = x.key[i + 1];
}
}
x.n--;
return;
}
if (!x.leaf) {
Node pred = x.child[pos];
int predKey = 0;
if (pred.n >= T) {
for (;;) {
if (pred.leaf) {
System.out.println(pred.n);
predKey = pred.key[pred.n - 1];
break;
} else {
pred = pred.child[pred.n];
}
}
delete(pred, predKey);
x.key[pos] = predKey;
return;
}
Node nextNode = x.child[pos + 1];
if (nextNode.n >= T) {
int nextKey = nextNode.key[0];
if (!nextNode.leaf) {
nextNode = nextNode.child[0];
for (;;) {
if (nextNode.leaf) {
nextKey = nextNode.key[nextNode.n - 1];
break;
}else {
nextNode = nextNode.child[nextNode.n];
}
}
}
delete(nextNode, nextKey);
x.key[pos] = nextKey;
return;
}
int temp = pred.n + 1;
pred.key[pred.n++] = x.key[pos];
for (int i = 0, j = pred.n; i < nextNode.n; i++) {
pred.key[j++] = nextNode.key[i];
pred.n++;
}
for (int i = 0; i < nextNode.n + 1; i++) {
pred.child[temp++] = nextNode.child[i];
}
x.child[pos] = pred;
for (int i = pos; i < x.n; i++) {
if (i != 2 * T - 2) {
x.key[i] = x.key[i + 1];
}
}
for (int i = pos + 1; i < x.n + 1; i++) {
if (i != 2 * T - 1) {
x.child[i] = x.child[i + 1];
}
}
x.n--;
if (x.n == 0) {
if (x == root) {
root = x.child[0];
}
x = x.child[0];
}
delete(pred, key);
return;
}
}else {
for (pos = 0; pos < x.n; pos++) {
if (x.key[pos] > key) {
break;
}
}
Node tmp = x.child[pos];
if (tmp.n >= T) {
delete(tmp, key);
return;
}
if (true) {
Node nb = null;
int devider = -1;
if (pos != x.n && x.child[pos + 1].n >= T) {
devider = x.key[pos];
nb = x.child[pos + 1];
x.key[pos] = nb.key[0];
tmp.key[tmp.n++] = devider;
tmp.child[tmp.n] = nb.child[0];
for (int i = 1; i < nb.n; i++) {
nb.key[i - 1] = nb.key[i];
}
for (int i = 1; i <= nb.n; i++) {
nb.child[i - 1] = nb.child[i];
}
nb.n--;
delete(tmp, key);
return;
}else if (pos != 0 && x.child[pos - 1].n >= T) {
devider = x.key[pos - 1];
nb = x.child[pos - 1];
x.key[pos - 1] = nb.key[nb.n - 1];
Node child = nb.child[nb.n];
nb.n--;
for (int i = tmp.n; i > 0; i--) {
tmp.key[i] = tmp.key[i - 1];
}
tmp.key[0] = devider;
for (int i = tmp.n + 1; i > 0; i--) {
tmp.child[i] = tmp.child[i - 1];
}
tmp.child[0] = child;
tmp.n++;
delete(tmp, key);
return;
}else {
Node lt = null;
Node rt = null;
boolean last = false;
if (pos != x.n) {
devider = x.key[pos];
lt = x.child[pos];
rt = x.child[pos + 1];
}else {
devider = x.key[pos - 1];
rt = x.child[pos];
lt = x.child[pos - 1];
last = true;
pos--;
}
for (int i = pos; i < x.n - 1; i++) {
x.key[i] = x.key[i + 1];
}
for (int i = pos + 1; i < x.n; i++) {
x.child[i] = x.child[i + 1];
}
x.n--;
lt.key[lt.n++] = devider;
for (int i = 0, j = lt.n; i < rt.n + 1; i++, j++) {
if (i < rt.n) {
lt.key[j] = rt.key[i];
}
lt.child[j] = rt.child[i];
}
lt.n += rt.n;
if (x.n == 0) {
if (x == root) {
root = x.child[0];
}
x = x.child[0];
}
delete(lt, key);
return;
}
}
}
}
//删除 BTree 中的元素/键
public void delete(int key) {
Node x = search_key(root, key);
if (x == null) {
return;
}
delete(root, key);
}
//搜索键
private void FindKeys(int a, int b, Node x, Stack<Integer> st) {
int i = 0;
for (i = 0; i < x.n && x.key[i] < b; i++) {
if (x.key[i] > a) {
st.push(x.key[i]);
}
}
if (!x.leaf) {
for (int j = 0; j < i + 1; j++) {
FindKeys(a, b, x.child[j], st);
}
}
}
private void display(Node x) {
assert (x == null);
for (int i = 0; i < x.n; i++) {
System.out.print(x.key[i] + " ");
}
if (!x.leaf) {
for (int i = 0; i < x.n + 1; i++) {
display(x.child[i]);
}
}
}
public static void main(String[] args) {
BTree b = new BTree(3);
//在 BTree 中插入元素
b.insert(8);
b.insert(9);
b.insert(10);
b.insert(11);
b.insert(15);
b.insert(20);
b.insert(17);
System.out.println("Insertion done");
System.out.println("删除前的B树元素：");
b.display();
int ele = 10;
System.out.print("
待删除的元素： " + ele);
//删除 BTree 中的元素 10
b.delete(10);
System.out.println("
删除后的B树元素：");
b.display();
}
}
输出
Insertion done 删除前的B树元素： 10 8 9 11 15 17 20 待删除的元素： 10 删除后的B树元素： 11 8 9 15 17 20
#BTree中的删除操作
class BTreeNode:
def __init__(self, leaf=False):
self.leaf = leaf
self.keys = []
self.child = []
class BTree:
def __init__(self, t):
self.root = BTreeNode(True)
self.t = t
# 在 BTree 中插入一个键
def insert(self, k):
root = self.root
if len(root.keys) == (2 * self.t) - 1:
temp = BTreeNode()
self.root = temp
temp.child.insert(0, root)
self.split_child(temp, 0)
self.insert_non_full(temp, k)
else:
self.insert_non_full(root, k)
# 如果 BTree 不满，则插入
def insert_non_full(self, x, k):
i = len(x.keys) - 1
if x.leaf:
x.keys.append((None, None))
while i >= 0 and k[0] < x.keys[i][0]:
x.keys[i + 1] = x.keys[i]
i -= 1
x.keys[i + 1] = k
else:
while i >= 0 and k[0] < x.keys[i][0]:
i -= 1
i += 1
if len(x.child[i].keys) == (2 * self.t) - 1:
self.split_child(x, i)
if k[0] > x.keys[i][0]:
i += 1
self.insert_non_full(x.child[i], k)
# 拆分 BTree 的子级
def split_child(self, x, i):
t = self.t
y = x.child[i]
z = BTreeNode(y.leaf)
x.child.insert(i + 1, z)
x.keys.insert(i, y.keys[t - 1])
z.keys = y.keys[t: (2 * t) - 1]
y.keys = y.keys[0: t - 1]
if not y.leaf:
z.child = y.child[t: 2 * t]
y.child = y.child[0: t - 1]
# 删除 BTree 中的节点
def delete(self, x, k):
t = self.t
i = 0
while i < len(x.keys) and k[0] > x.keys[i][0]:
i += 1
if x.leaf:
if i < len(x.keys) and x.keys[i][0] == k[0]:
x.keys.pop(i)
return
return
if i < len(x.keys) and x.keys[i][0] == k[0]:
return self.delete_internal_node(x, k, i)
elif len(x.child[i].keys) >= t:
self.delete(x.child[i], k)
else:
if i != 0 and i + 2 < len(x.child):
if len(x.child[i - 1].keys) >= t:
self.delete_sibling(x, i, i - 1)
elif len(x.child[i + 1].keys) >= t:
self.delete_sibling(x, i, i + 1)
else:
self.delete_merge(x, i, i + 1)
elif i == 0:
if len(x.child[i + 1].keys) >= t:
self.delete_sibling(x, i, i + 1)
else:
self.delete_merge(x, i, i + 1)
elif i + 1 == len(x.child):
if len(x.child[i - 1].keys) >= t:
self.delete_sibling(x, i, i - 1)
else:
self.delete_merge(x, i, i - 1)
self.delete(x.child[i], k)
# 显示 BTree
def display(self, x, l=0):
for i in x.keys:
print(i, end=" ")
print()
l += 1
if len(x.child) > 0:
for i in x.child:
self.display(i, l)
B = BTree(3)
for i in range(10):
B.insert((i, 2 * i))
print("Insertion Done")
print("删除前的BTree元素：")
B.display(B.root)
B.delete(B.root, (8,))
print("删除后的BTree元素： ")
B.display(B.root)
输出
Insertion Done 删除前的BTree元素： (2, 4) (5, 10) (0, 0) (1, 2) (3, 6) (4, 8) (6, 12) (7, 14) (8, 16) (9, 18) 删除后的BTree元素： (2, 4) (5, 10) (0, 0) (1, 2) (3, 6) (4, 8) (6, 12) (7, 14) (9, 18)
